Primary configuration

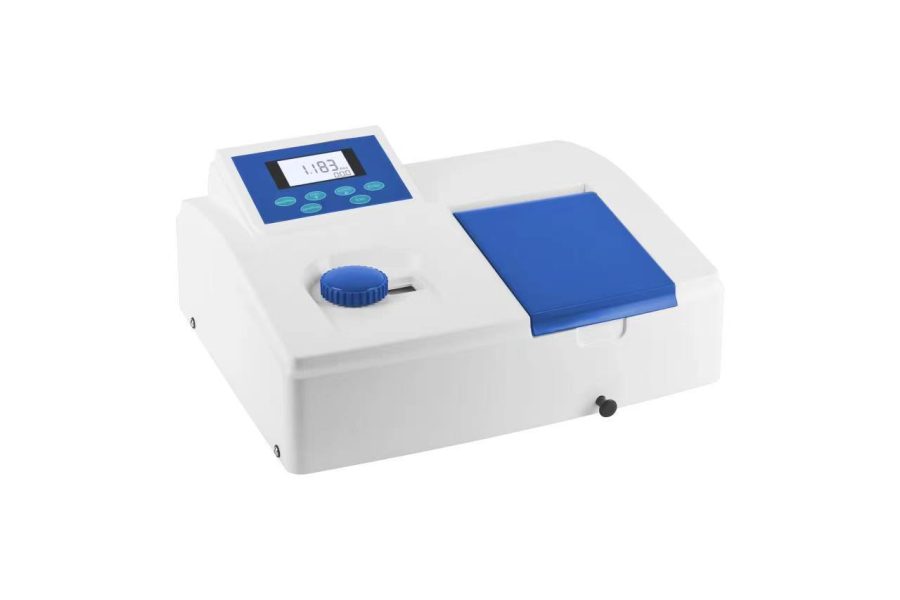

1200 Series Basic Spectrophotometer
A basic single-beam instrument that covers the standard teaching experiments with simple controls.
Not intended for scanning methods or research-grade stability requirements.
Research
Education & Research
Instrument selection for teaching laboratories and research groups: absorbance, electrochemistry, weighing and microvolume work.
Overview
Teaching laboratories need instruments that are easy to operate, suitable for frequent use and able to produce results students can interpret. A basic spectrophotometer, pH and conductivity meters, and a suitable balance can provide a starting point. Research groups may also need scanning, microvolume measurement, fluorescence or melting point analysis.
What the laboratory measures
The routine tasks behind a typical quality program, the parameters involved and the instrument group that covers them.
| Measurement task | Parameters / range | Typical method | Instrument group |
|---|---|---|---|
| Teaching absorbance and calibration curves | 0–2 Abs · 340–1000 nm | Single-wavelength absorbance | Basic spectrophotometer |
| Spectral scans and method development | 190–1100 nm | Wavelength scan | Scanning spectrophotometer |
| pH, conductivity and ion measurement | pH 0–14 · 0–200 mS/cm | Direct immersion | pH / conductivity meters |
| Sample and reagent weighing | 0.001–0.1 g | Gravimetric | Electronic balance |
| Nucleic acid and protein quantification | 0.5–5000 ng/µL | Microvolume absorbance | Microvolume spectrophotometer |
| Fluorescence measurements | ng/mL to µg/mL | Fluorescence spectroscopy | Fluorescence spectrophotometer |
| Melting point in organic practicals | 0–400 °C | Capillary method | Melting point instrument |
| Water-chemistry practicals | mg/L range | Colorimetric or electrochemical | Spectrophotometer / meters |
Workflow
From sample to reported result
Sample handling and preparation can strongly affect results. Review the following steps to reduce avoidable errors.
-
Choose the experiment list
The practical schedule decides the wavelength range and the accessories.
-
Plan the changeover
Cuvette handling and cleaning between classes matter more than the optical specification.
-
Standardise the protocol
Written steps reduce the questions that arrive during the practical.
-
Export the data
Students need a file format they can open on their own laptops.
-
Protect the instrument
Covers, spare cells and a locked method set extend the life of a teaching instrument.
Recommended instruments
Plan the complete workflow, including supporting equipment, consumables and maintenance requirements.
Primary configuration
YP Series Electronic Balance
A robust electronic balance for reagent and sample preparation in a teaching laboratory.
0.1 g readability is not sufficient for analytical standard preparation.
Supporting
UM Series Nano Spectrophotometer
Microvolume quantification for nucleic acid and protein samples at very small volumes.
Not a general-purpose cuvette instrument; it complements rather than replaces one.
Supporting
F950 Fluorescence Spectrophotometer
Fluorescence measurements for research groups working at low concentration.
Requires method development and dark-room discipline to be useful.
Entry / alternative
1000 Series Basic Spectrophotometer
The lowest-cost route to a fixed-wavelength teaching experiment.
Limited to the wavelengths the experiment needs.
Entry / alternative
MP-V360 Melting Point Meter
Melting range determination for organic chemistry practicals.
One sample at a time; class throughput needs planning.
Application notes
Practical guidance on methods, common errors and instrument configuration.
Application note
Equipping a teaching laboratory: UV-Vis, pH and balance selection
How to choose instruments that survive a class timetable, produce interpretable results and can be shared with a…
Application note
Teaching UV-Vis: Make the Experiment Transferable
A teaching laboratory guide to experiment design, sample handling and result export — aimed at an experiment a…
Application note
Research Lab Instrument Briefs: Plan Accessories and Data Export
Why research teams should specify the accessory list, the operating environment and the data handover before ordering —…
A teaching laboratory buys for two users: the student who must understand the result, and the technician who must keep the instrument working across a timetable. Both are served by simple controls, a robust sample compartment and a protocol that does not depend on a specialist operator.
Research groups often need greater flexibility. Wavelength scanning, microvolume sampling and fluorescence support additional methods. If teaching and research teams share an instrument, define procedures for cleaning, method settings and handover.
Confirm that students can export data in a format they can open on their own computers. This supports analysis, reporting and review beyond the laboratory session.
How to plan the workflow
Teaching and research laboratories need instruments that are understandable to new users and flexible enough for the next experiment. Define the demonstrations, sample types, measurement range, throughput and data export before selecting the bench configuration.
An international education project also needs clear training materials, spare parts, language support and a practical service contact. A short method library helps students repeat the experiment while giving researchers room to develop a new method.
Questions for a global project
- Which experiments must be ready for the first teaching term?
- How will students access and export results safely?
- What accessories and training keep the instrument useful beyond one course?
Selection checklist: what to confirm before an inquiry
- Sample matrix
- Teaching samples, research samples and method-development work.
- Target parameters
-
- Absorbance spectra
- Sample mass
- pH and conductivity
- Method and conditions
- Teaching protocols and research methods vary widely. Confirm the experiments, sample volumes and the accessories needed before choosing between entry-level and higher-performance configurations.
- Suggested configuration
- A single-beam UV-Vis for teaching, a balance for sample preparation, and electrochemical meters for water-chemistry practicals.
- Limitations
- Research work often needs accessories that are not part of the standard package. List them before comparing quotations.
Questions we are asked about this workflow
For advice specific to your application, please share your method details.
What is the minimum useful spectrophotometer for teaching?
One that covers the wavelengths of the practicals with a stable lamp and simple controls. Scanning and double-beam features add cost without changing the teaching outcome.
Can a teaching balance also serve research preparation?
For coarse preparation, yes. Analytical work with reference standards needs 1 mg or 0.1 mg readability and a stable bench.
Do we need a microvolume instrument?
Only if the research group works with very small volumes, typically nucleic acid or protein quantification. It does not replace a cuvette spectrophotometer.
How many pH meters does a teaching laboratory need?
Plan by bench rather than student count. One meter per four to six students keeps the practical moving without queues.
