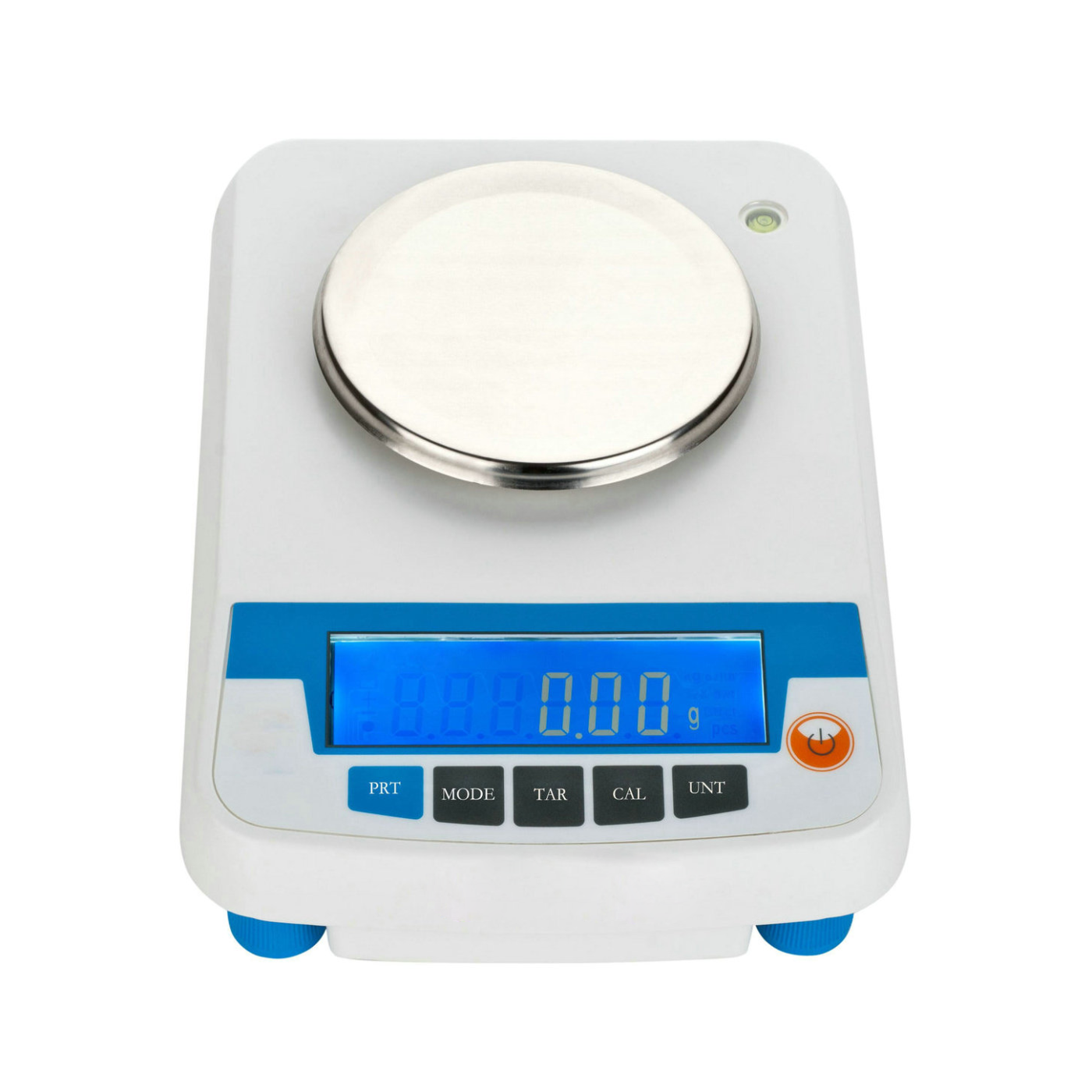

YP Series Electronic Balance

Name: YP Series Electronic Balance
Brand: YOKON

Readability: 10mg; Weighing range: 0~100g.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category Electronic Balance In production

YP Series Electronic Balance core specifications
Weighing Range	0~100g
Readability	10mg
Pan Size	Φ130mm

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

[email protected]

Model comparison

YP Series Electronic Balance range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

YP Series Electronic Balance — 31 models
Model	Weighing Range	Readability	Pan Size
YP1002	0~100g	10mg	Φ130mm
YP2002	0~200g	10mg	Φ130mm
YP3002	0~300g	10mg	Φ130mm
YP4002	0~400g	10mg	Φ130mm
YP5002	0~500g	10mg	Φ130mm
YP6002	0~600g	10mg	Φ130mm
YP10002	0~1000g	10mg	Φ130mm
YP20002	0~2000g	10mg	Φ130mm
YP30002	0~3000g	10mg	Φ130mm
YP2001	0~200g	100mg	Φ130mm
YP4001	0~400g	100mg	Φ130mm
YP6001	0~600g	100mg	Φ130mm
YP8001	0~800g	100mg	Φ130mm
YP10001	0~1000g	100mg	Φ130mm
YP20001	0~2000g	100mg	Φ165mm
YP30001	0~3000g	100mg	Φ165mm
YP40001	0~4000g	100mg	Φ165mm
YP50001	0~5000g	100mg	Φ165mm
YP60001	0~6000g	100mg	Φ165mm
YP1000	0~1000g	1g	Φ165mm
YP2000	0~2000g	1g	Φ165mm
YP3000	0~3000g	1g	Φ165mm
YP5000	0-5000g	1g	Φ165mm
YP6000	0-6000g	1g	Φ165mm
YP80001	0~8000g	100mg	255*190mm
YP100001	0-10000g	0.1g	255*190mm
YP200001	0-20000g	0.1g	255*190mm
YP10000	0-10000g	1g	255*190mm
YP15000	0-15000g	1g	255*190mm
YP20000	0-20000g	1g	255*190mm
YP30000	0-30000g	1g	255*190mm

Overview

What this instrument measures, and how it fits the range.

The YP Series Electronic Balance covers 31 models, YP1002 to YP30000. Readability runs from 0.1 g to 100 mg. The comparison table lists every value side by side.
