ST Series Balance

Name: ST Series Balance
Brand: YOKON

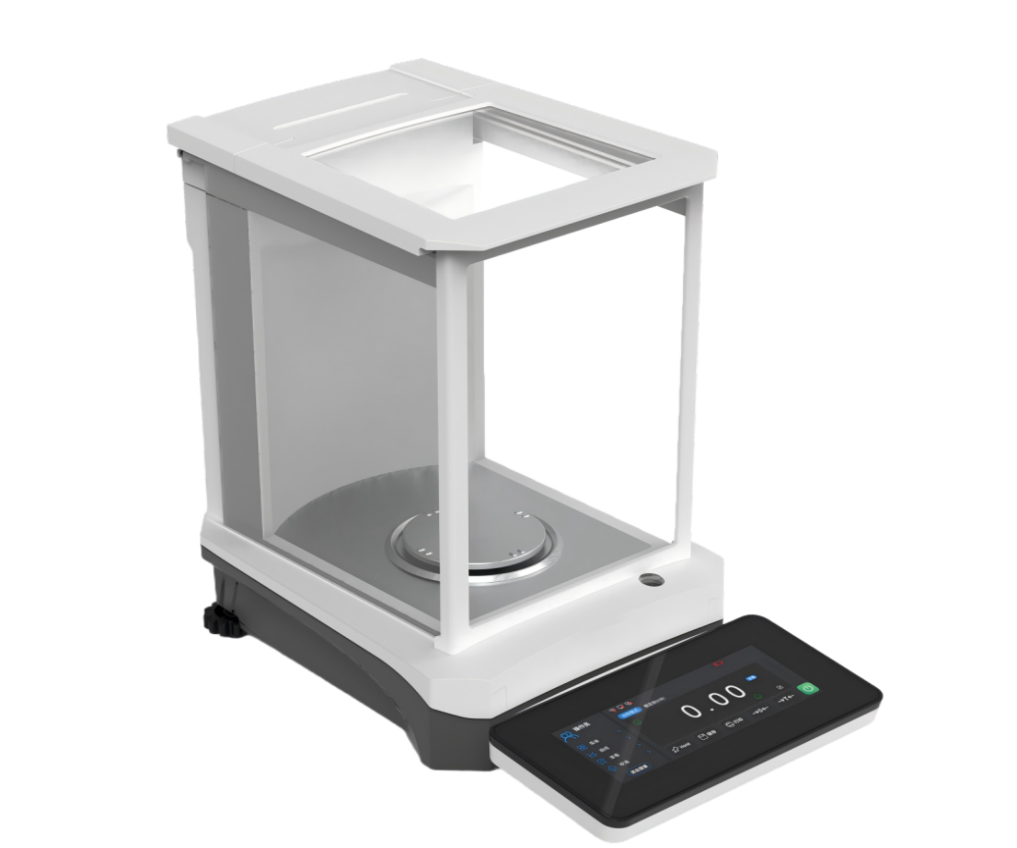

A separate 6.8-inch full-color LCD touchscreen provides flexible positioning of the display and weighing unit.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category Electronic Balance In production

ST Series Balance core specifications
Readability	e=1mg d=0.1mg
Stabilization Time	Optional in 2S or 4S
Maximum permissible error	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

[email protected]

Model comparison

ST Series Balance range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

ST Series Balance — 10 models
Model	Maximum Capacity	Calibration	Readability	Stabilization Time	Maximum permissible error	Pan Size
ST104	100g	External	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST124	120g	External	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST204	200g	External	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST224	220g	External	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST304	300g	External	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST104C	100g	Internal	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST124C	120g	Internal	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST204C	200g	Internal	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST224C	220g	Internal	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm
ST304C	300g	Internal	e=1mg d=0.1mg	Optional in 2S or 4S	±0.5e 0≤m≤50000 ±1.0e 50000＜m≤200000 ±1.5e m＞200000	Φ80mm

Shaded labels mark the specifications that differ between models.

Overview

What this instrument measures, and how it fits the range.

The ST Series Balance covers 10 models, ST104 to ST304C. Maximum capacity runs from 100 g to 300 g. The comparison table lists every value side by side.

Key points

A separate 6.8-inch full-color LCD touchscreen provides flexible positioning of the display and weighing unit.
Adopts an advanced electromagnetic force balance sensor to achieve ultra-high weighing precision, capable of sensitively detecting tiny mass changes. Meanwhile, it features excellent linearity and repeatability, effectively reducing measurement errors and ensuring accurate and reliable weighing results every time.
Digital signal processing and environmental compensation help stabilize readings and reduce the effects of vibration and air movement.
Built-in multiple weighing modes and functions: weighing, piece counting, percentage weighing, check weighing, animal weighing, density weighing, zero tracking; supports various weighing units (g, kg, mg, oz, ozt, gr, ct, lb, q, dwt, lt, dr, N) and other accessory functions.
The display resolution can be adjusted for different samples. Select a stabilization time of 2 or 4 seconds. The instrument can save weighing data at set intervals and generate a mass-change curve.
The IoT platform supports centralized monitoring and management of compatible instruments.
21 CFR compliant software is optional.

Full specifications for this model are listed at the top of this page.
