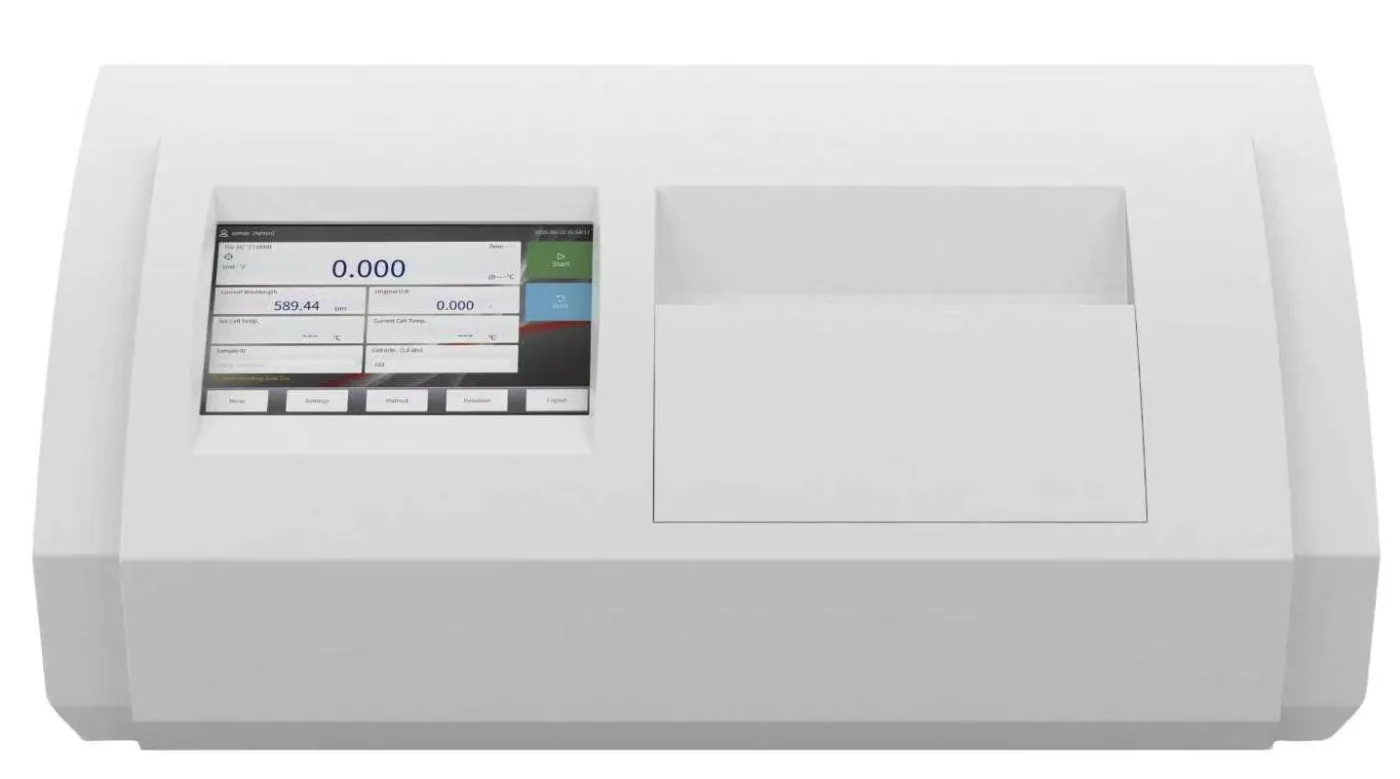

Explore ApplicationsPolarimeter Series
Optical rotation, specific rotation, concentration and sugar content from 0.001° resolution, with Peltier temperature control from 10 °C to 50 °C.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Light Source | LED cold light source, service life over 100,000 hours. Standard equipped with 589.44 nm (in vacuum) / 589.3 nm (in air). |
|---|---|
| Temperature Range | 0-100°C |
| Temperature Accuracy | ±0.1°C |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
Polarimeter Series range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Parameter | WZZ-2S | TGW-2 | TGW-3 | TGW-5 | TGW-6 | TGW-8 |
|---|---|---|---|---|---|---|
| Measuring Range | optical rotation: ±89.9° | Optical Rotation: ±89.9°, Sugar Content: ±259 °Z | Optical Rotation: ±89.9°, Sugar Content: ±259 °Z | Optical Rotation: ±89.9°, Sugar Content: ±259 °Z | Optical Rotation: ±89.9°, Sugar Content: ±259 °Z | Optical Rotation: ±89.9°, Sugar Content: ±259 °Z |
| Resolution | 0.01°/ 0.001°Z | 0.001°/0.0001°Z | 0.001°/0.0001°Z | 0.001°/0.0001°Z | 0.001°/0.0001°Z | 0.001°/0.0001°Z |
| Accuracy | ±0.01° | ±0.01° | ±0.01° | ±0.008° | ±0.005° | ±0.002° |
| Repeatability | ≤0.005° | ≤0.005° | ≤0.005° | ≤0.003° | ≤0.002° | ≤0.001° |
| Measuring Mode | optical rotation | optical rotation, specific rotation, concentration, sugar content, user-defined | optical rotation, specific rotation, concentration, sugar content, user-defined | optical rotation, specific rotation, concentration, sugar content, user-defined | optical rotation, specific rotation, concentration, sugar content, user-defined | optical rotation, specific rotation, concentration, sugar content, user-defined |
| Temperature Control Mode | — | Peltier temperature control | Peltier temperature control | Peltier temperature control | Peltier temperature control | Peltier temperature control |
| Temperature Control Range | — | 10-50°C | 10-50°C | 10-50°C | 10-50°C | 10-50°C |
| Temperature Control Accuracy | — | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Maximum number of stored methods | 10 | 50 | 100 | 100 | 100 | 100 |
| Maximum number of stored results | 20 | 500 | 5000 | 5000 | 5000 | 5000 |
| Maximum number of users | 1 (No user management) | 1 (No user management) | 500 | 500 | 500 | 500 |
| Compliant Standards | — | — | Meet various measurement standards and pharmacopoeias, 21 CFR. | Meet various measurement standards and pharmacopoeias, 21 CFR. | Meet various measurement standards and pharmacopoeias, 21 CFR. | Meet various measurement standards and pharmacopoeias, 21 CFR. |
| Maximum number of log entries | — | — | 20000 | 20000 | 20000 | 20000 |
| Standard Sample Cell | 100mm Standard Type | 100mm Standard Type | 100mm Standard Type | 100mm Standard Type | 100 mm standard cell; 100 mm corrosion-resistant, temperature-controlled cell. | 100 mm standard cell; 100 mm corrosion-resistant, temperature-controlled cell. |
Overview
What this instrument measures, and how it fits the range.
The Polarimeter Series covers 6 models, WZZ-2S to TGW-8. Accuracy differs across models: ±0.01°, ±0.008°, ±0.005° or ±0.002°. The comparison table lists every value side by side.
Key points
- 10.1-inch high-definition full-color touchscreen
- LED cold light source rated for more than 100,000 hours, no sodium or tungsten lamp
- Built-in Peltier temperature control, 10–50 °C, for temperature-sensitive samples
- Optical rotation ±89.9°, sugar scale up to ±259 °Z
- Audit trail, user rights management and 21 CFR Part 11 compliance on the TGW models
- Sample cells from 2.5 mm to 200 mm, sample volume from 0.05 mL to 20 mL
Full specifications for this model are listed at the top of this page.
Accessories
Confirm these items before the final quotation. Accessories are listed only where the manufacturer offers them.
Standard accessories
Ask for an itemized quotation that separates standard items from options.
Optional accessories
- Micro polarimeter tubes with Luer connectors
- Funnel-sampling polarimeter tubes
- Metal measuring cells
- Ceramic measuring cells
- Quartz tubes up to 200 mm, made to order
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
Common selection questions
Confirm requirements with our team before the final order.
What can the polarimeter measure?
Optical rotation, specific rotation, concentration and sugar content, with 0.001° resolution. Specific rotation and concentration are the modes used in pharmaceutical identity testing, and sugar content is the mode used in sugar-industry payment analysis.
How is temperature controlled?
Peltier control specified from 10 °C to 50 °C with ±0.1 °C accuracy. Optical rotation is temperature-sensitive, so a controlled cell is not optional when the result has to be reproducible as specific rotation.
Which sample cells fit?
Any cell of 200 mm path length or below, in the standard and jacketed variants. The LED source is rated above 100,000 hours, and data exports over USB, RS232 or the PC interface.
