P9 Series

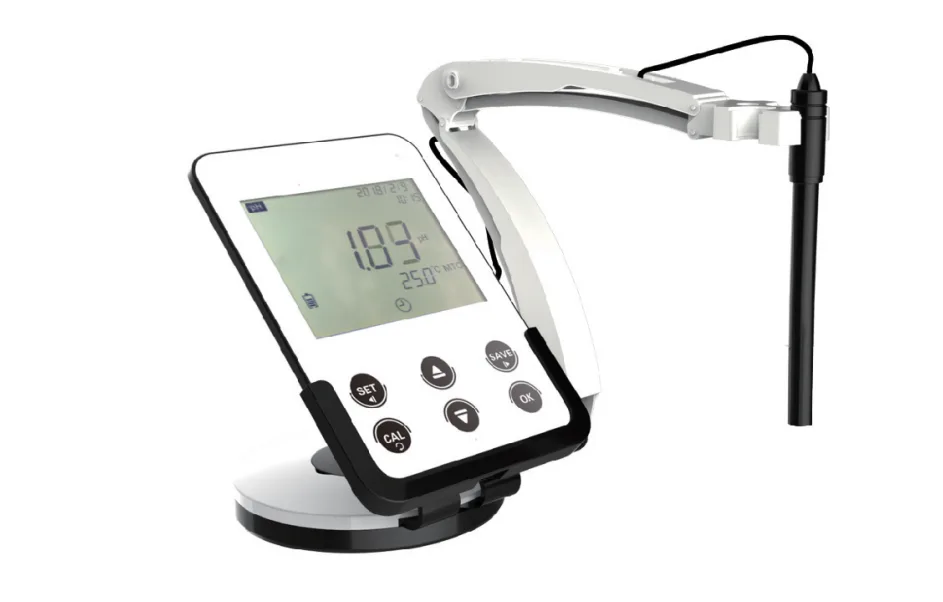

P913 pH/Conductivity Meter

Name: P913 pH/Conductivity Meter
Brand: YOKON
SKU: P913

pH/Conductivity Meter with ±0.02 pH accuracy over (-2 – 19.999)pH, a 5-Inch white backlit LCD screen and 200 stored readings. IP54.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

Model P913 Category pH Meter In production

P913 core specifications
pH — Measuring range	(-2 ~ 19.999)pH
pH — Resolution	0.1/0.01pH
pH — Accuracy	±0.02 pH
pH — Input current	≤2×10⁻¹² A
pH — Input impedance	≥1×10¹² Ω
pH — Stability	±0.002 pH/3h
pH — Temperature compensation range	(0 ~ 100)°C, auto/manual
mV — Measuring range	-1999.9mV ~ 0 ~ 1999.9mV
mV — Resolution	0.1mV
mV — Accuracy	±0.03% FS
Conductivity — Measuring range	Conductivity: (0.00 ~ 20.00)μS/cm; (20.0 ~ 200.0)μS/cm; (200 ~ 2000)μS/cm; (2.00 ~ 20.00)mS/cm; (20.0 ~ 200.0)mS/cm; TDS: (0–100) g/L; Salinity:(0 ~ 100)ppt; Resistivity:(0 ~ 100)MΩ·cm
Conductivity — Resolution	0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Conductivity — Accuracy	Meter: ±1.50% FS; Electrode: ±1.0% FS
Conductivity — Temperature compensation range	(0 ~ 50)°C, auto
Conductivity — Electrode constant	0.1/1/10 cm-1
Temperature — Measuring range	(-10 ~ 110)°C
Temperature — Resolution	0.1°C
Temperature — Accuracy	5 ~ 60°C: range: ±0.4°C; other range: ±0.8°C
Calibration	1, 2, 3 point
Other — Display	5-Inch white backlit LCD screen
Other — Data storage	200 sets
Other — Power	DC 5V/1A
Other — Communication connector	Micro USB & Standard USB
Working Condition — Environment Temperature	5 ~ 35 °C
Operating conditions — Relative humidity	≤85%
Operating conditions — IP rating	IP54

Send your sample type and method, and we will confirm the configuration and current lead time.

Overview

What this instrument measures, and how it fits the range.

P913 is a pH/conductivity meter in the P9 Series, with a pH measuring range of (-2 ~ 19.999)pH and a pH accuracy of ±0.02 pH.

5-inch LCD screen with 150° viewing angle for clear reading out of 5 meters.
Built-in microprocessor chip has intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, automatic power-off and low voltage alarm, etc.
Two USB interfaces for PC connection, battery charging, and data transfer.
5mm electrode interface makes it very easy for electrode connection.
Automatic recognition of different electrodes. The electrode with built-in chip can automatically store and retrieve calibration data after connecting with meter.
Automatic recognition of buffers & calibration solutions with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration.
Can store 200 sets of data including readings, GLP data, date and time.
Rechargeable battery can last for 30 hours. Auto power off when no operation in 10 minutes.

Full specifications for this model are listed at the top of this page.
