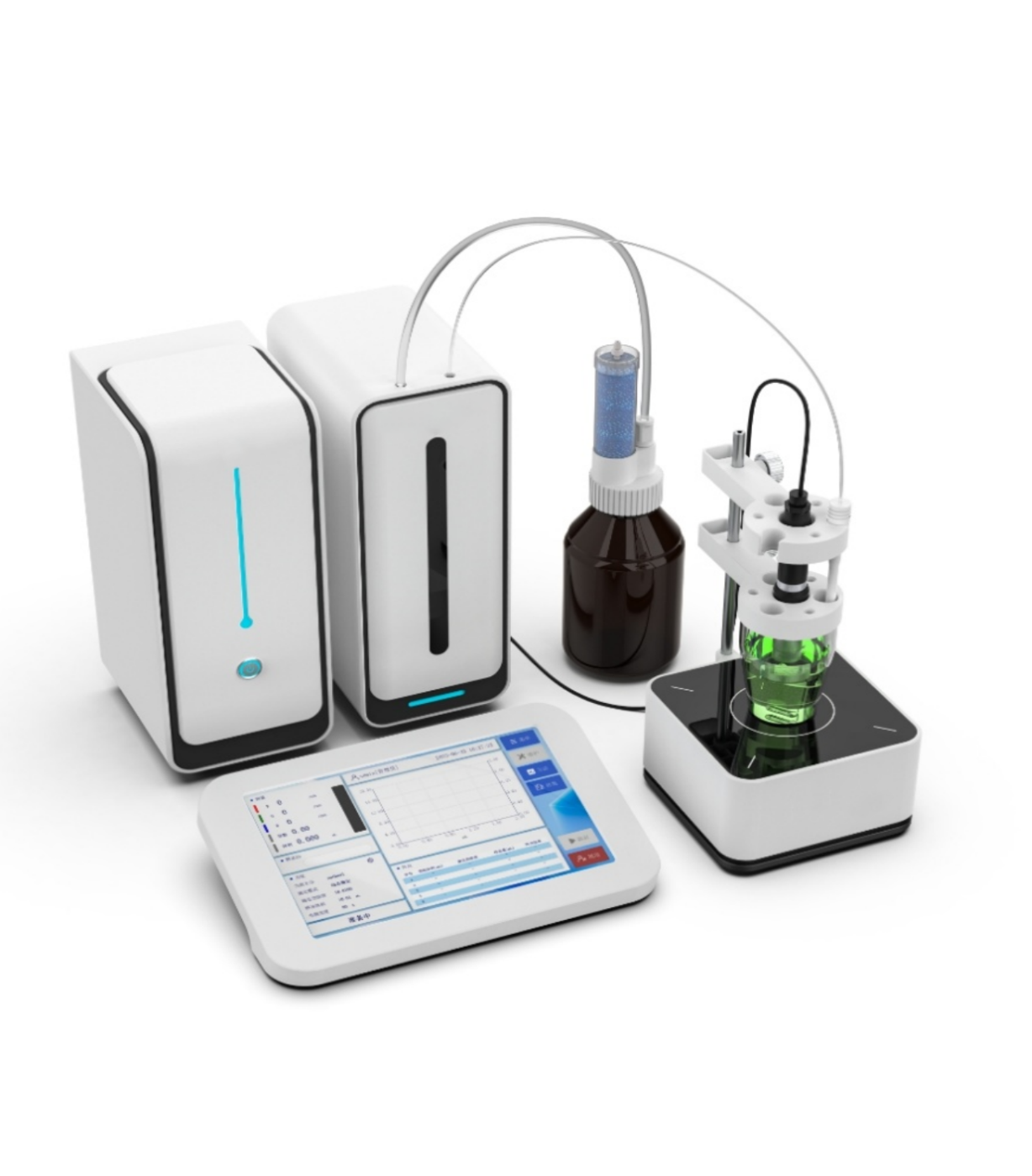

KM-30 Color Titrator
Color titrator with an optical color sensor, magnetic stirring, 1/96000 measurement resolution and a 10 mL burette, driven from a 10-inch touchscreen.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Sensor type | Optical color sensor |
|---|---|
| Sample mixing method | Magnetic stirring and mixing |
| Color measurement range | Covers the full RGB color gamut analysis |
| Measurement resolution | 1/96000 |
| Titration burette specifications | 10mL |
| Titration accuracy | ≤0.01mL |
| Titration burette resolution | 1/96000 |
| Data storage | Up to the instrument's memory limit |
| Accounts | 100 pcs |
| Methods | 100 sets |
| Data Storage | 10000 sets |
| Output | USB port for data export |
| PC Software | Not available |
| Printing | Optional wired dot-matrix printer and Bluetooth thermal printer. |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelOverview
What this instrument measures, and how it fits the range.
KM-30 is a color titrator in the KM Series, with a titration accuracy of ≤0.01 mL.
Key points
- 10-inch color touchscreen, direct concentration readout, real-time display of test methods, titration volume and measurement results.
- The titration modes include dynamic titration, equivalent titration, and manual titration.
- Functions include automatic color titration, manual titration, color recognition, color calibration, adjustable stirring, automatic cleaning/refilling, automatic endpoint determination…
- Adopts advanced optical sensors to capture subtle changes in solution color in real time.
- Equipped with a unique integrated color sensor and automatic light compensation, it greatly reduces interference from external ambient light.
Full specifications for this model are listed at the top of this page.
Accessories
Confirm these items before the final quotation. Accessories are listed only where the manufacturer offers them.
Standard accessories
Ask for an itemized quotation that separates standard items from options.
Optional accessories
- Wired dot-matrix printer
- Bluetooth thermal printer
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
