IT Series

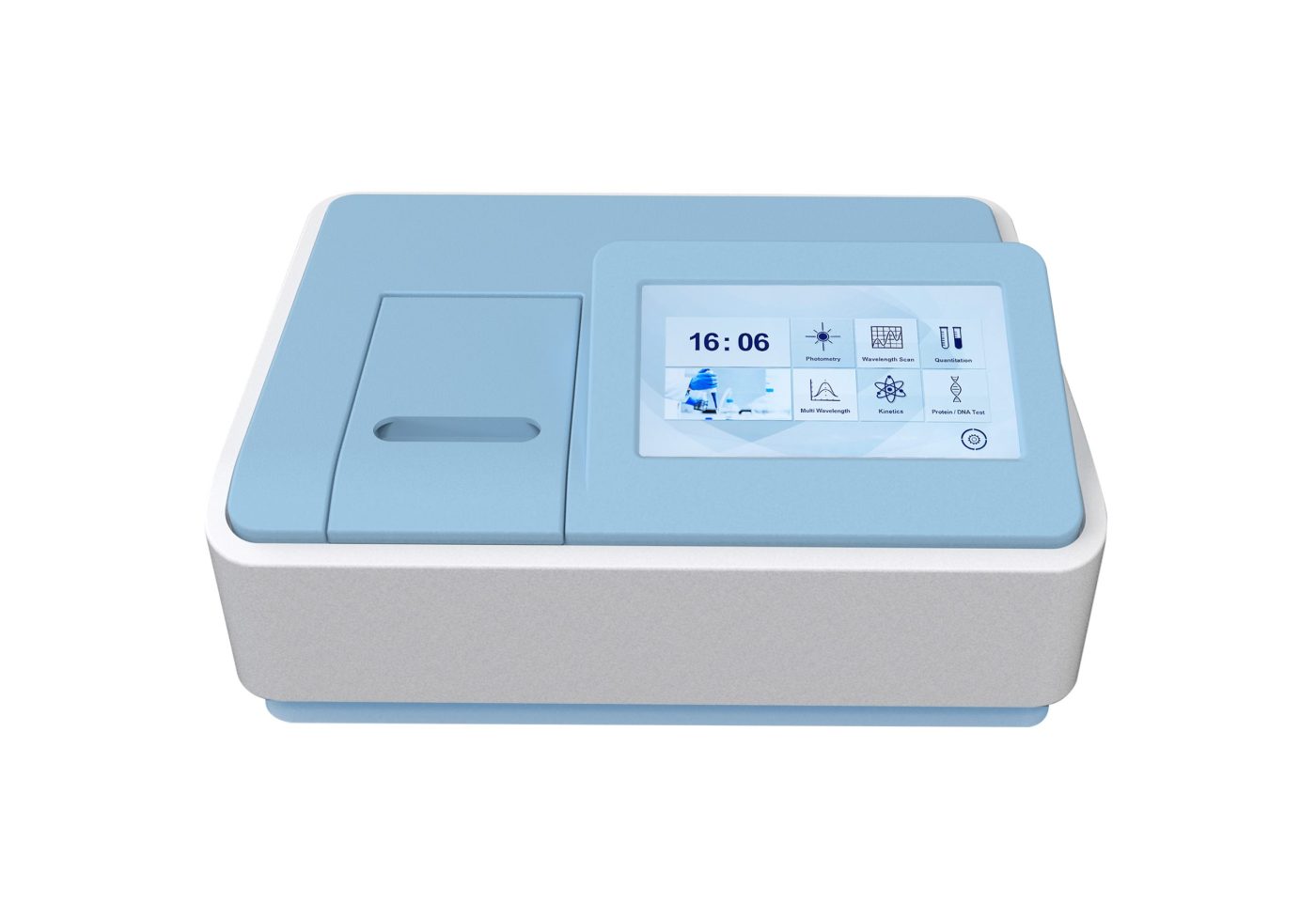

IT-600U Double Beam Spectrophotometer

IT-600U is a double-beam spectrophotometer with 1.8 nm bandwidth over 190–1,100 nm and ±0.1 nm wavelength accuracy at 656.1 nm.

Model IT-600U Category UV-Vis Spectrophotometer In production
IT-600U core specifications
Optical System Double Beam, Grating 1200 lines/mm
Wavelength Range 190-1100 nm
Spectral Bandwidth 1.8 nm
Wavelength Accuracy ±0.1 nm at 656.1 nm; ±0.3 nm across the specified wavelength range
Wavelength Repeatability ≤0.1 nm
Photometric Accuracy 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Photometric Range 0-200%T, -0.3~3A, 0-9999C (0-9999F)
Stray Light ≤0.03%T@220 nm, 360 nm
Stability ±0.0003A/h @500 nm
Baseline Flatness ±0.001A
Noise 0.0005A@500 nm
Work Mode T, A, C, E
Scanning Speed Hi, Med, Low (Max. 3000 nm/min)
Wavelength Setting Auto
Display 10.1-inch Touchscreen
Light Source Deuterium &Tungsten lamp
Detector Silicon Photodiode
Cuvette Holder 10 mm single hole cell holder
Output USB drive, USB host, RS232
Power AC 220 V, 50 Hz or AC 110 V, 60 Hz

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

sales@yoke-fac.com

Overview

What this instrument measures, and how it fits the range.

IT-600U is a double beam spectrophotometer in the IT Series, with a wavelength range of 190-1100 nm and a wavelength repeatability of ≤0.1 nm.

Key points

  • 10.1-inch touchscreen with a Windows graphical interface.
  • Functions include photometric measurement, quantitative analysis, kinetics, wavelength scanning, DNA/protein analysis and multi-wavelength measurement.
  • In-house massive memory is capable of saving up to 1024M for test data & working curves.
  • Supports USB storage. The USB port can be used for data transfer and exporting to Excel for further processing, analysis and storage.
  • Socket-type deuterium and tungsten lamps support lamp switching without optical realignment, and the lamps are easy to replace.
  • Extensive accessories are optional, such as film holder, integrating sphere, Peltier temperature-control / sipper system, 21 CFR compliant software, built-in thermal printer, PC software etc.

Full specifications for this model are listed at the top of this page.

Accessories

Confirm these items before the final quotation. Accessories are listed only where the manufacturer offers them.

Standard accessories

  • 10mm glass cuvette x 4
  • 10mm quartz cuvette x 2
  • Power cord
  • User manual

Optional accessories

  • film holder
  • integrating sphere
  • Peltier temperature-control / sipper system
  • 21 CFR compliant software
  • built-in thermal printer
  • PC software
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
