IT Series

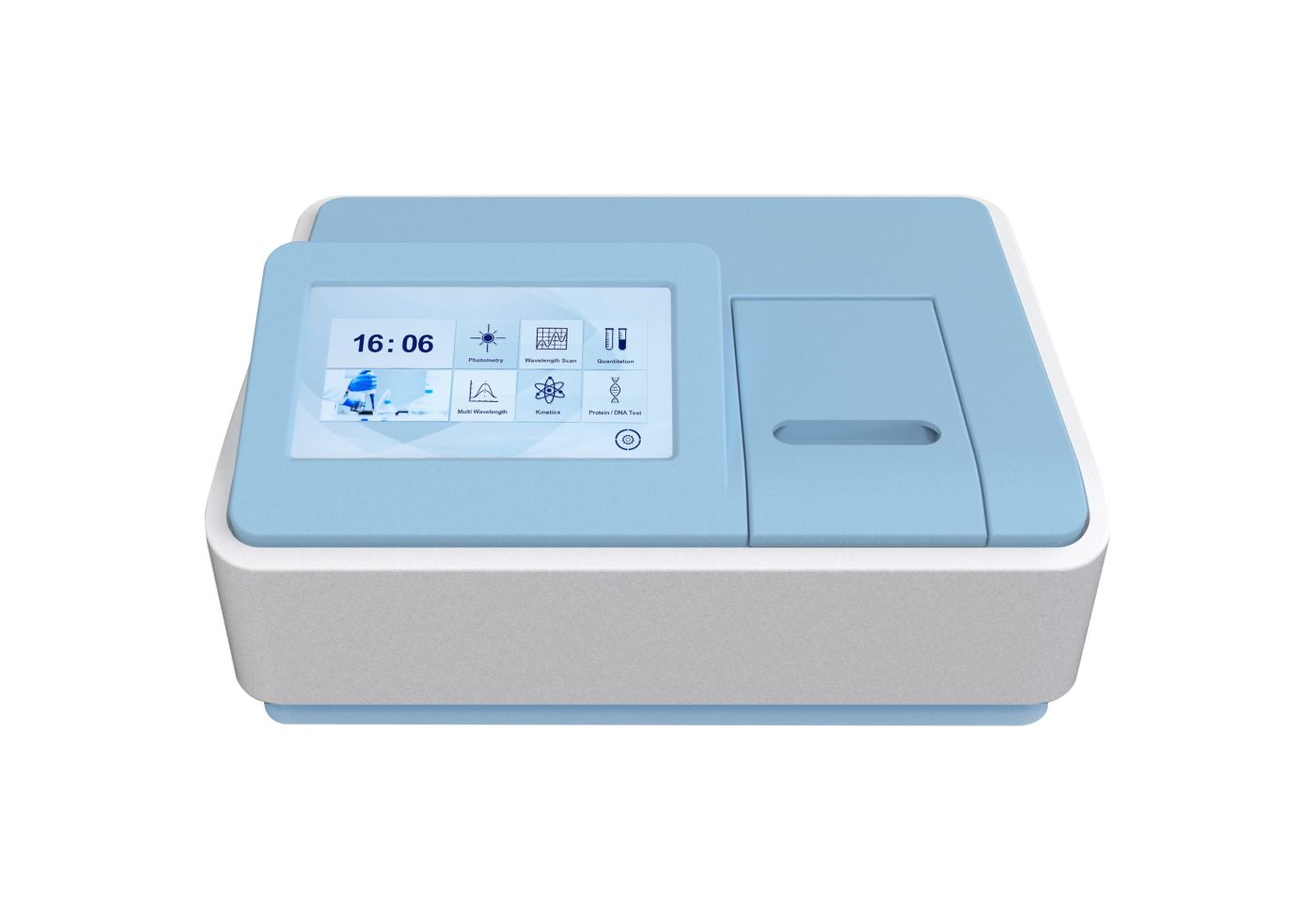

IT-400U Split Beam Spectrophotometer
Wavelength range: 190-1100 nm; Photometric range: 0-200%T, -0.3~3A.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Optical System | Split Beam, Grating 1200 lines/mm |
|---|---|
| Wavelength Range | 190-1100 nm |
| Spectral Bandwidth | 1.8nm |
| Wavelength Accuracy | ±0.1 nm @ 656.1 nm, ±0.3 nm @ all |
| Wavelength Repeatability | ≤0.1nm |
| Photometric Accuracy | 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A) |
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A) |
| Photometric Range | 0-200%T, -0.3~3A |
| Stray Light | ≤0.05%T@220nm, 360nm |
| Stability | ±0.0003A/h @500 nm |
| Baseline Flatness | ±0.002A |
| Noise | 0.0005A@500nm |
| Work Mode | T, A, C, E |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Wavelength Setting | Auto |
| Display | 10.1 inches Touch Screen |
| Light Source | Deuterium &Tungsten lamp |
| Detector | Silicon Photodiode |
| Cuvette Holder | Manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 220V/50Hz or AC 110V/60Hz |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelOverview
What this instrument measures, and how it fits the range.
IT-400U is a split beam spectrophotometer in the IT Series, with a wavelength range of 190-1100 nm and a wavelength repeatability of ≤0.1 nm.
Key points
- 10.1-inch touchscreen and Windows graphic interface.
- Functions include photometric measurement, quantitative analysis, kinetics, wavelength scanning, DNA/protein analysis and multi-wavelength measurement.
- In-house massive memory is capable of saving up to 1024M for test data & working curves.
- Supports USB storage. The USB port can be used for data transfer and exporting to Excel for further processing, analysis and storage.
- Socket-type deuterium and tungsten lamps support lamp switching without optical realignment, and the lamps are easy to replace.
- Extensive accessories are optional, such as film holder, integrating sphere, Peltier temperature-control / sipper system, 21 CFR compliant software, built-in thermal printer, PC software etc.
Full specifications for this model are listed at the top of this page.
Accessories
Confirm these items before the final quotation. Accessories are listed only where the manufacturer offers them.
Standard accessories
- 10mm glass cuvette x 4
- 10mm quartz cuvette x 2
- Power cord
- User manual
Optional accessories
- film holder
- integrating sphere
- Peltier temperature-control / sipper system
- 21 CFR compliant software
- built-in thermal printer
- PC software
Product documentation
- Brochure Yoke product guide Download
- Selection guide Prepare a UV-Vis purchase brief v1.0 Learn more
