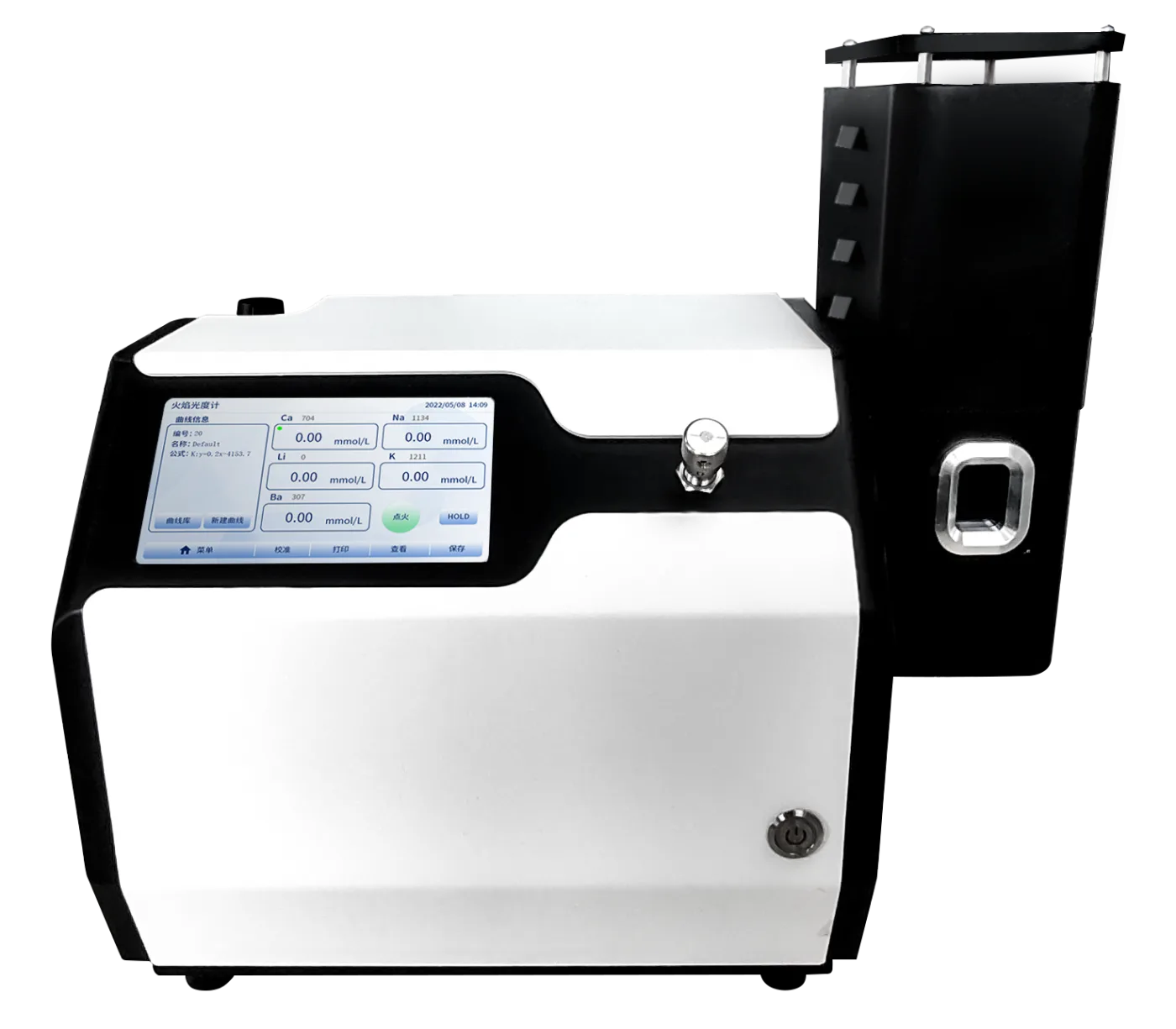

FP Series Flame Photometer

Name: FP Series Flame Photometer
Brand: YOKON

Reading range: 0.000~999.9/0~65535.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category Flame Photometer In production

FP Series Flame Photometer core specifications
Display	7-inch color touchscreen
Display Results	Concentration value/Energy
Reading Range	0.000~999.9/0~65535

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

[email protected]

Model comparison

FP Series Flame Photometer range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

Compare models

FP Series Flame Photometer — 7 models
Parameter	FP6450	FP6440	FP6432	FP6431	FP6430	FP6410	FP6400
Display	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen
Display Results	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy
Reading Range	0.000~999.9/0~65535	0.000~999.9/0~65535	0.000~999.9/0~65535	0.000~999.9/0~65535	0.000~999.9/0~65535	0.000~999.9/0~65535	0.000~999.9/0~65535
Measurable elements	K, Na, Li, Ca, Ba	K, Na, Li, Ca	K, Na, Ba	K, Na, Ca	K, Na, Li	K, Na	K, Na
Number of channels	5	4	3	3	3	2	2
Measurement range (ppm)	0-100; 0-160; 0-100; 0-1000; 0-3000	0-100; 0-160; 0-100; 0-1000; ——	0-100; 0-160; ——; ——; 0-3000	0-100; 0-160; ——; 0-1000; ——	0-100; 0-160; 0-100; ——; ——	0-100; 0-160; ——; ——; ——	0-100; 0-160; ——; ——; ——
Detection limit (ppm)	0.01; 0.1; 2; 6	0.01; ≤0.015; 2; ——	0.01; ——; ——; 6	0.01; ——; 2; ——	0.01; ≤0.015; ——; ——	0.01; ——; ——; ——	0.01; ——; ——; ——
Linear Error	0.195; 0.69; 0.15; 3; 9	0.195; 0.69; 0.15; 3; ——	0.195; 0.69; ——; ——; 9	0.195; 0.69; ——; 3; ——	0.195; 0.69; 0.15; ——; ——	0.195; 0.69; ——; ——; ——	0.195; 0.69; ——; ——; ——
Response Time	<8S	<8S	<8S	<8S	<8S	<8S	<8S
Sample uptake rate	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min
Stability	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling	<3% drift over 15s when continuous sampling
Reproducibility	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples	<3% coefficient of variation for 7 consecutive samples
Bluetooth Printer	Yes	Yes	Yes	Yes	Yes	Yes	No
Output	USB port	USB port	USB port	USB port	USB port	USB port	USB port
Power	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz
