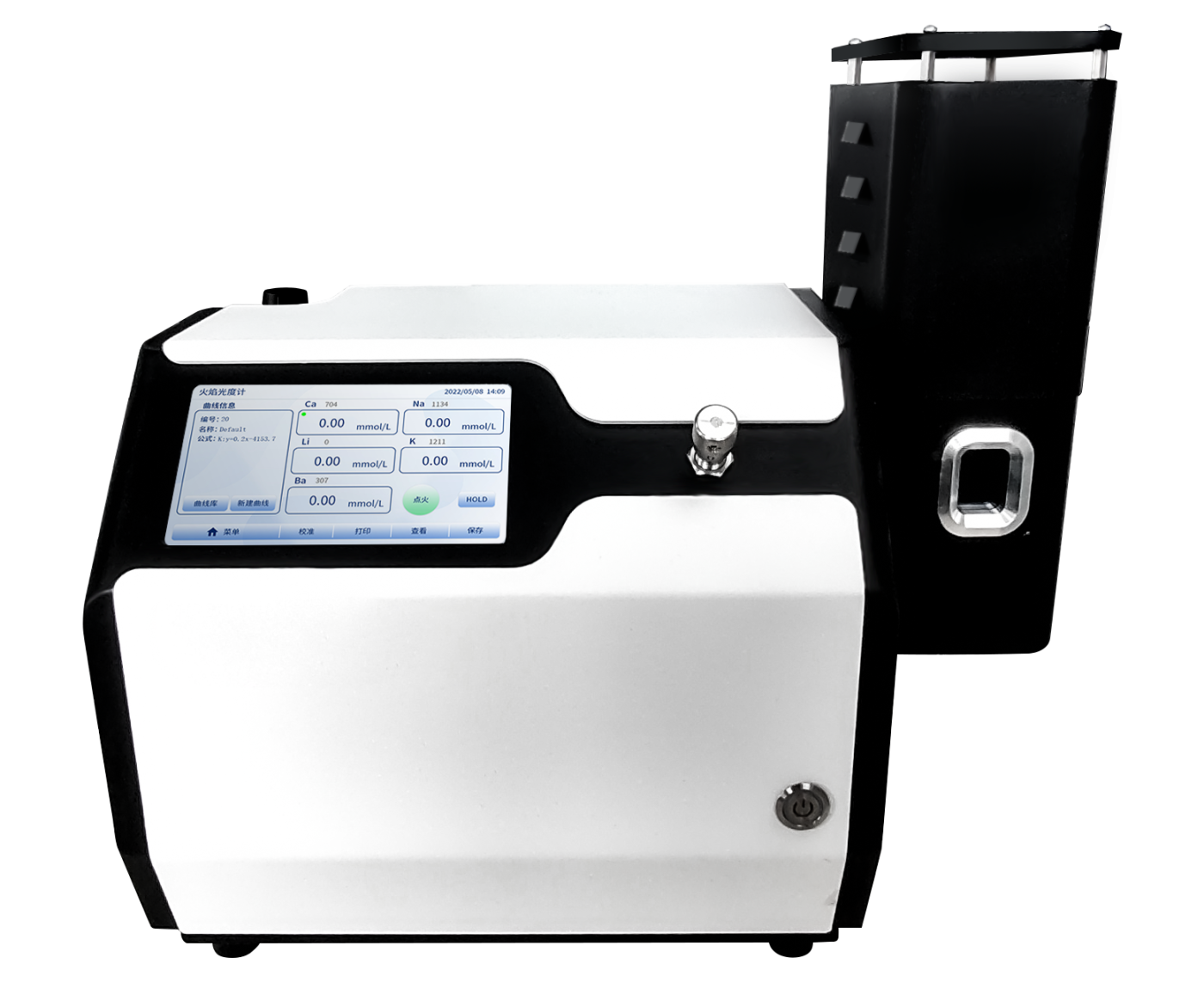

FP-D Series Intelligent Flame Photometer

Name: FP-D Series Intelligent Flame Photometer
Brand: YOKON

Built-in Oil-Free Air Compressor: No external air compressor required; plug-and-play operation saves laboratory space.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category Flame Photometer In production

FP-D Series Intelligent Flame Photometer core specifications
Display	7-inch color touchscreen
Display Results	Concentration value/Energy
Reading Range	0.000~99999.999/0~65535

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

[email protected]

Model comparison

FP-D Series Intelligent Flame Photometer range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

Compare models

FP-D Series Intelligent Flame Photometer — 7 models
Parameter	FP6450D	FP6440D	FP6432D	FP6431D	FP6430D	FP6410D	FP6400D
Display	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen	7-inch color touchscreen
Display Results	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy	Concentration value/Energy
Reading Range	0.000~99999.999/0~65535	0.000~99999.999/0~65535	0.000~99999.999/0~65535	0.000~99999.999/0~65535	0.000~99999.999/0~65535	0.000~99999.999/0~65535	0.000~99999.999/0~65535
Measurable elements	K, Na, Li, Ca, Ba	K, Na, Li, Ca	K, Na, Ba	K, Na, Ca	K, Na, Li	K, Na	K, Na
Number of channels	5	4	3	3	3	2	2
Detection limit (ppm)	≤0.004; ≤0.008; ≤0.015; ≤0.050; ≤0.044	≤0.004; ≤0.008; ≤0.015; ≤0.050; ——	≤0.004; ≤0.008; ——; ——; ≤0.044	≤0.004; ≤0.008; ——; ≤0.050; ——	≤0.004; ≤0.008; ≤0.015; ——; ——	≤0.004; ≤0.008; ——; ——; ——	≤0.004; ≤0.008; ——; ——; ——
Linear Error	≤0.005; ≤0.03; ≤0.021; ≤0.075; ≤0.066	≤0.005; ≤0.03; ≤0.021; ≤0.075; ——	≤0.005; ≤0.03; ——; ——; ≤0.066	≤0.005; ≤0.03; ——; ≤0.075; ——	≤0.005; ≤0.03; ≤0.021; ——; ——	≤0.005; ≤0.03; ——; ——; ——	≤0.005; ≤0.03; ——; ——; ——
Response Time	<8S	<8S	<8S	<8S	<8S	<8S	<8S
Sample uptake rate	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min	<6ml/min
Stability	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.	Continuous Injection with Standard Solution: The relative maximum change in the instrument reading within 15 s shall be ≤ 3%. Measure once per minute for a total of 6 measurements: the relative maximum change in the instrument reading shall be ≤ 15%.
Reproducibility	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples	≤3% coefficient of variation for 7 consecutive samples
Bluetooth Printer	Yes	Yes	Yes	Yes	Yes	Yes	No
Output	USB port	USB port	USB port	USB port	USB port	USB port	USB port
Power	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz	AC 220V/50Hz or AC 110V/60Hz

Overview

What this instrument measures, and how it fits the range.

The FP-D Series Intelligent Flame Photometer covers 7 models, FP6450D to FP6400D. The comparison table lists every value side by side.

Key points

Built-in Oil-Free Air Compressor: No external air compressor required; plug-and-play operation saves laboratory space.
Gas Leak Alarm System: Real-time monitoring of gas status with automatic alarms in case of abnormalities.
Multiple Safety Protections: Automatic ignition, flame-out protection, and gas circuit abnormality alarm.
Supports PC software operation, USB storage, printing, and historical data traceability.
High-Stability Detection Performance: Fast response, excellent repeatability, and stable long-term operation.

Full specifications for this model are listed at the top of this page.
