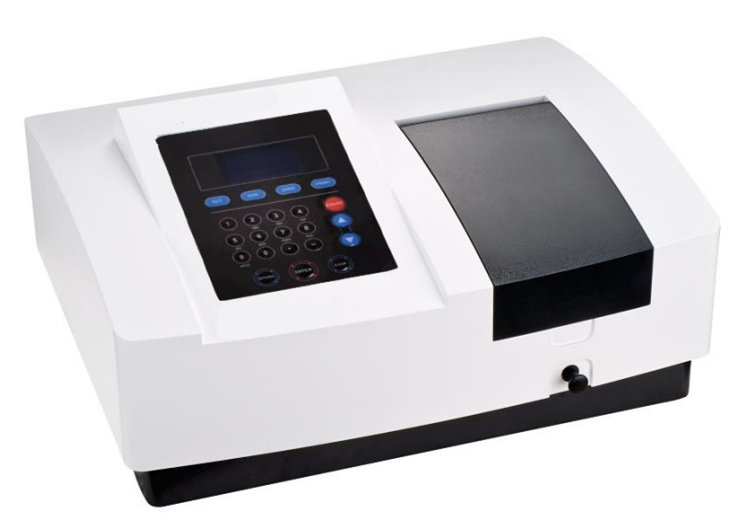

V1700 Visible Spectrophotometer

Item No.: V1700
The instrument has basic functions of photometric analysis and quantitative analysis. With PC software, it expands the applications, such as wavelength scanning, kinetics, DNA/protein analysis, multi-wavelength test, etc.
INQUIRY
Description
Single Beam Spectrophotometer V1700, V1710
Features:
1. Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.
2. The  instrument has basic functions of Photometric analysis and Quantitative analysis.  With PC software, it expands the applications, such as wavelength scanning, Kinetics, DNA/protein analysis, Multi-wavelength test, etc.
3. Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
4.  Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
5. Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
6.
Extensive accessories are optional, such as 50/100 mm manual 4-cell holder, auto 8-cell holder, film holder, multi-cell holder, 21 CFR compliant software, etc.
Specificaions:
Model V1700 V1710
Optical System Single Beam, Grating 1200 lines/mm
Wavelength Range 320~1100nm (Visible region) 340~1050nm
Spectral Bandwidth 2 nm 4nm
Wavelength Accuracy ±0.5 nm ±1nm
Wavelength Repeatability ±0.2 nm ±0.2 nm
Photometric Accuracy 0.3%T 0.5%T
Photometric Repeatability 0.2%T
Photometric Range 0-200%T, -0.3-3.0 Abs, 0-9999C
Stray light 0.05%T 0.15%T
Stability ±0.002A/h @500nm ±0.002A/h @500nm
Baseline Flatness ±0.002 A
Noise ±0.001 A
Wavelength Setting Auto
Working Mode %T, Abs, Conc., Energy
Display 128*64 LCD
Detector Silicon Photodiode
Output USB
Power AC 220V/50Hz; AC 110V/60Hz
Light Source Halogen Tungsten Lamp
Shipping Size 700*580*340mm
Weight 20kg
Standard Accessories 10 mm glass cuvette x 4, Power cord, Manual
