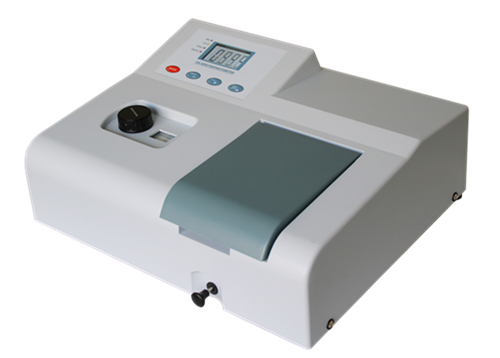

V1000 Visible Spectrophotometer

Item No.: V1000
1000 series is a simple single beam spectrophotometer. Low price and simple design make the model ideal tool for education or routine analysis.
INQUIRY
Description
1000 Series Visible Basic Spectrophotometer
Product Description:
1000 series is a simple single beam spectrophotometer. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via RS232 port for further analysis. Low price and simple design make the model ideal tool for education or routine analysis.
Applications:
Education in universities and colleges, Food & Beverage production and quality control, Agricultural monitoring, etc.
Specificaions:
Model V1000 V1100
Optical System Single Beam, Grating 1200 lines/mm
Wavelength Range 340‐1020 nm 330‐1020 nm
Spectral Bandwidth 6 nm 5 nm
Wavelength Accuracy ±3 nm ±2nm
Wavelength Repeatability 1nm
Photometric Accuracy ±1%T ±0.5%T
Photometric Repeatability 0.5%T 0.2%T
Photometric Range 0-200%T,-0.3-3A
Stray light 0.5%T 0.3%T
Stability  0.004 A 0.002A
Baseline Flatness ±0.002A ±0.002A
Noise ±0.001 A
Wavelength Setting Manual
Work Mode T, A, C
Light Source Tungsten lamp
Display 4 LCD
Detector Silicon Photodiode
Output  RS-232 port
Power AC 220V/50Hz or AC 110V/60Hz
 Shipping Size 520*450*320mm
Gross Weight 10kg
