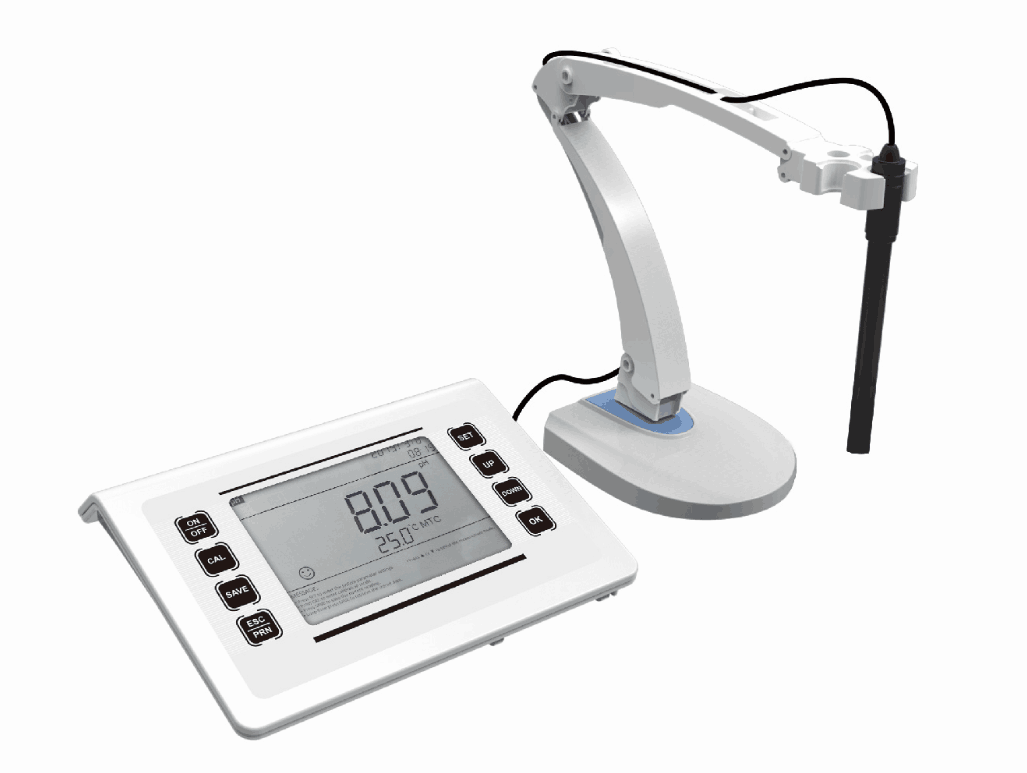

P712 Benchtop Conductivity Meter
Item No.: P712
Measuring range: Conductivity: 0.00μS/cm-200.0mS/cm, TDS:(0 ~ 100)g/L, Salinity:(0 ~ 100)ppt, Resistivity:(0 ~ 100)MΩ·cm
Resolution: 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Accuracy: Electrode: ±1.0% FS, Meter: ±1.5% FS
Resolution: 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Accuracy: Electrode: ±1.0% FS, Meter: ±1.5% FS
Description
| P712 Conductivity Meter | ||
| Features： | ||
| 1. 6.5-inch LED screen with concise and friendly-use interface. | ||
| 2. Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc. | ||
| 3. It supports wireless bluetooth printing. Real-time data transfer to mobile phone via bluetooth is optional. | ||
| 4. Smart electrode status display to ensure accurate use. | ||
| 5. Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm. | ||
| 6. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full range. | ||
| 7. With ATC conductivity electrode, Its measurement result is fast and precise. | ||
| 8. Omron long lasting and light touch key can be used more than 100,000 times. | ||
| 9. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China. | ||
| 10. Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel. | ||
| Specifications: | ||
| Conductivity | Measuring range | Conductivity: |
| (0.00~20.00)μS/cm | ||
| (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm | ||
| (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±1.0% FS, Meter: ±1.5% FS | |
| Temp. compensation range | (0 ~ 50)℃, auto | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temp. | 25℃、20℃、18℃ | |
| Temperature | Range | (-10 ~ 110)℃ |
| Resolution | 0.1℃ | |
| Accuracy | 5 ~ 60℃:±0.5℃ Others: ±1.0℃ | |
| Other Parameters | Display | 6.5-inch LED screen |
| Data storage | 1000 sets | |
| Power | 12V (110-220, 50-60Hz adapter) | |
| Communication interface | USB, RS232, Bluetooth | |
| Dimensions & Weight | 240×170×70mm/600g | |
| Working Conditions | Temperature | 5 ~ 35 ℃ |
| Humidity | ≤80% | |
| IP grade | IP54 | |
| Meter Kits | 1) Conductivity meter | |
| 2) Electrode holder | ||
| 3) Two-in-one electrode that consists of Platinum black electrode (K=1) and temperature probe. | ||
| 4) Power adapter | ||
